Aliva 503.3

Overview

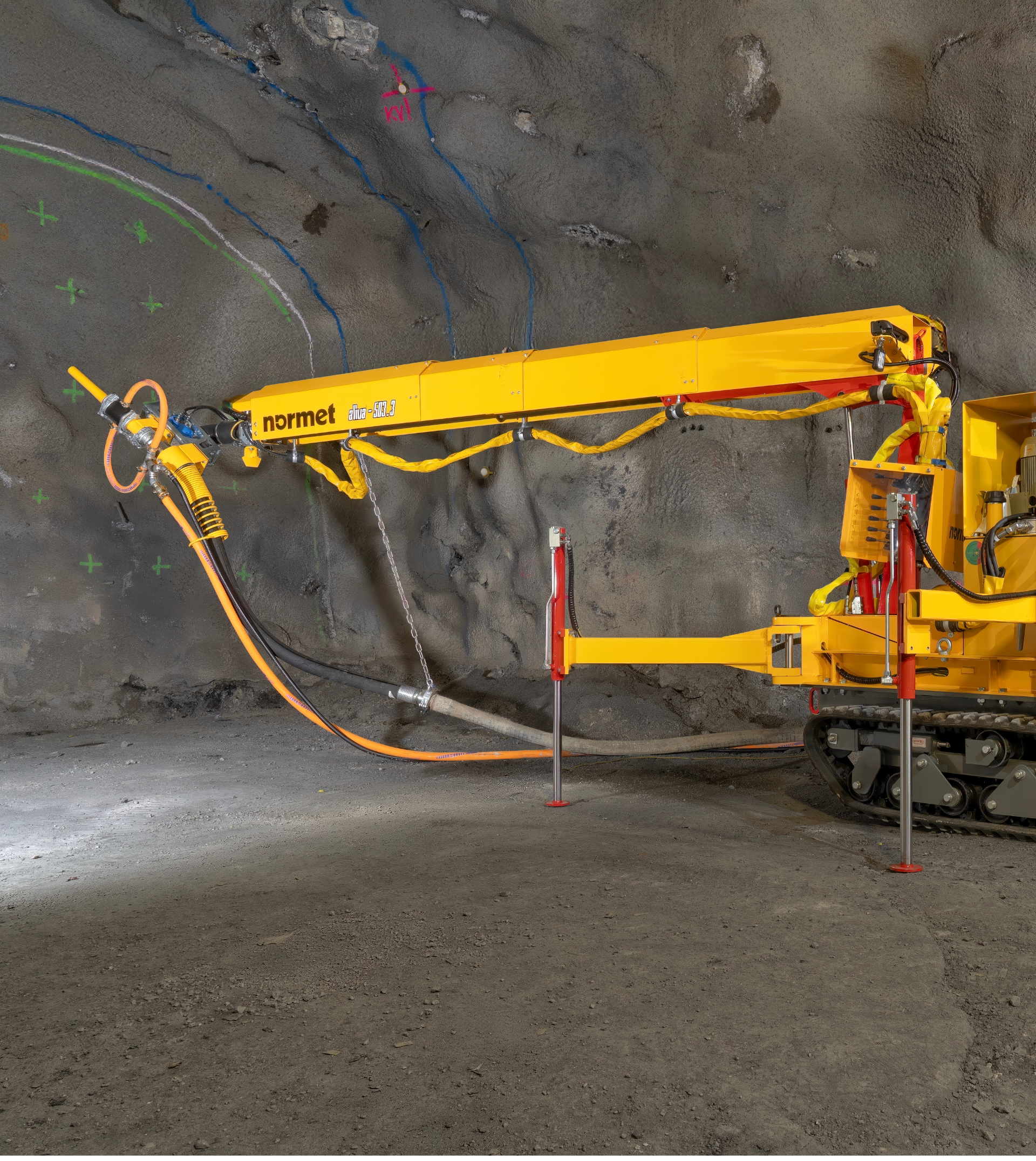

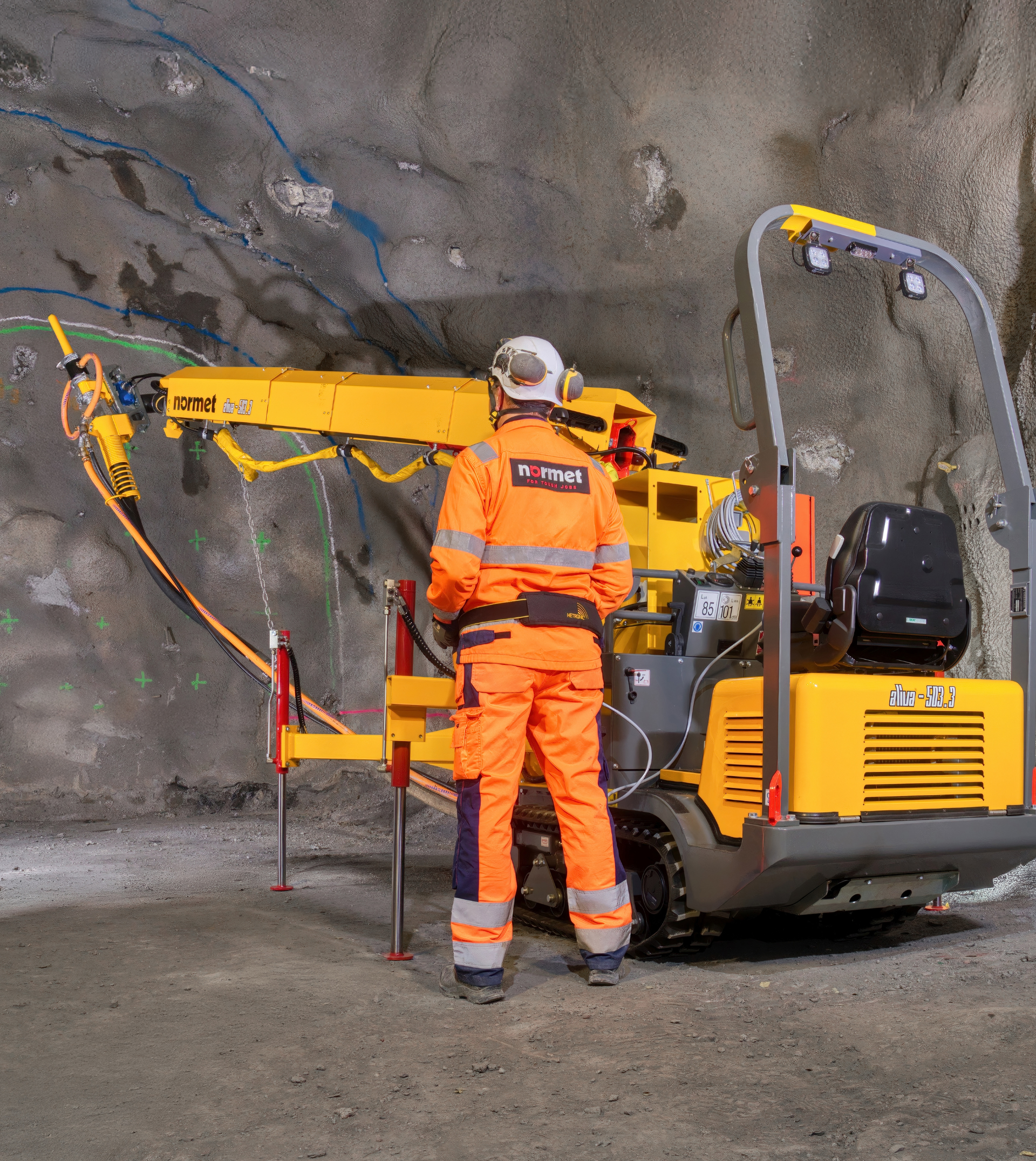

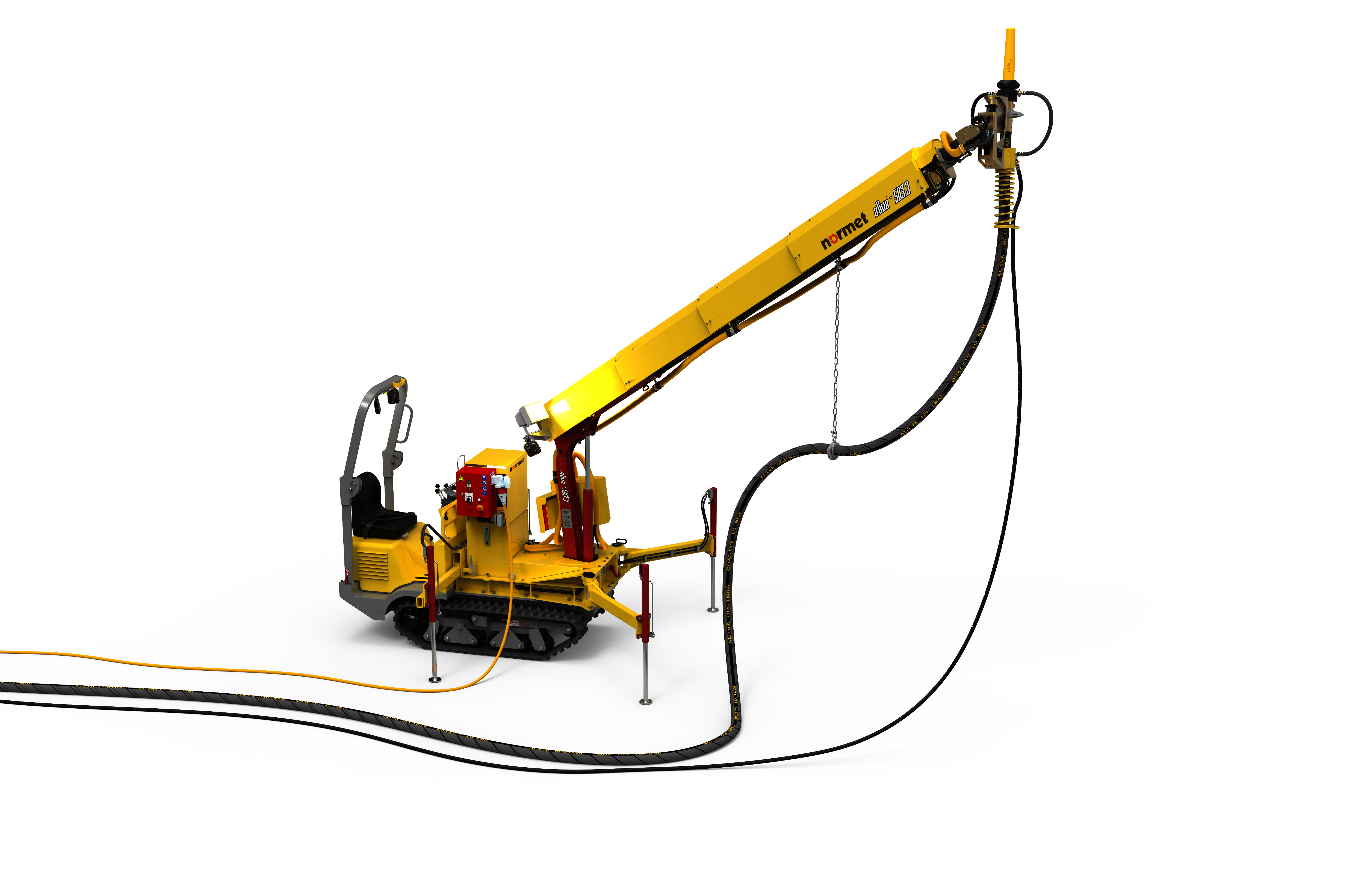

The Aliva 503.3 mobile concrete spraying manipulator is the perfect choice for applying wet or dry mixes in diverse working spaces, including narrow tunnels. Its reinforced track carrier, equipped with four hydraulic supporting legs, ensures maximum stability during the concrete spraying process. This robust design makes it an ideal solution for a variety of applications, combining versatility and stability for effective concrete application.

Key specification

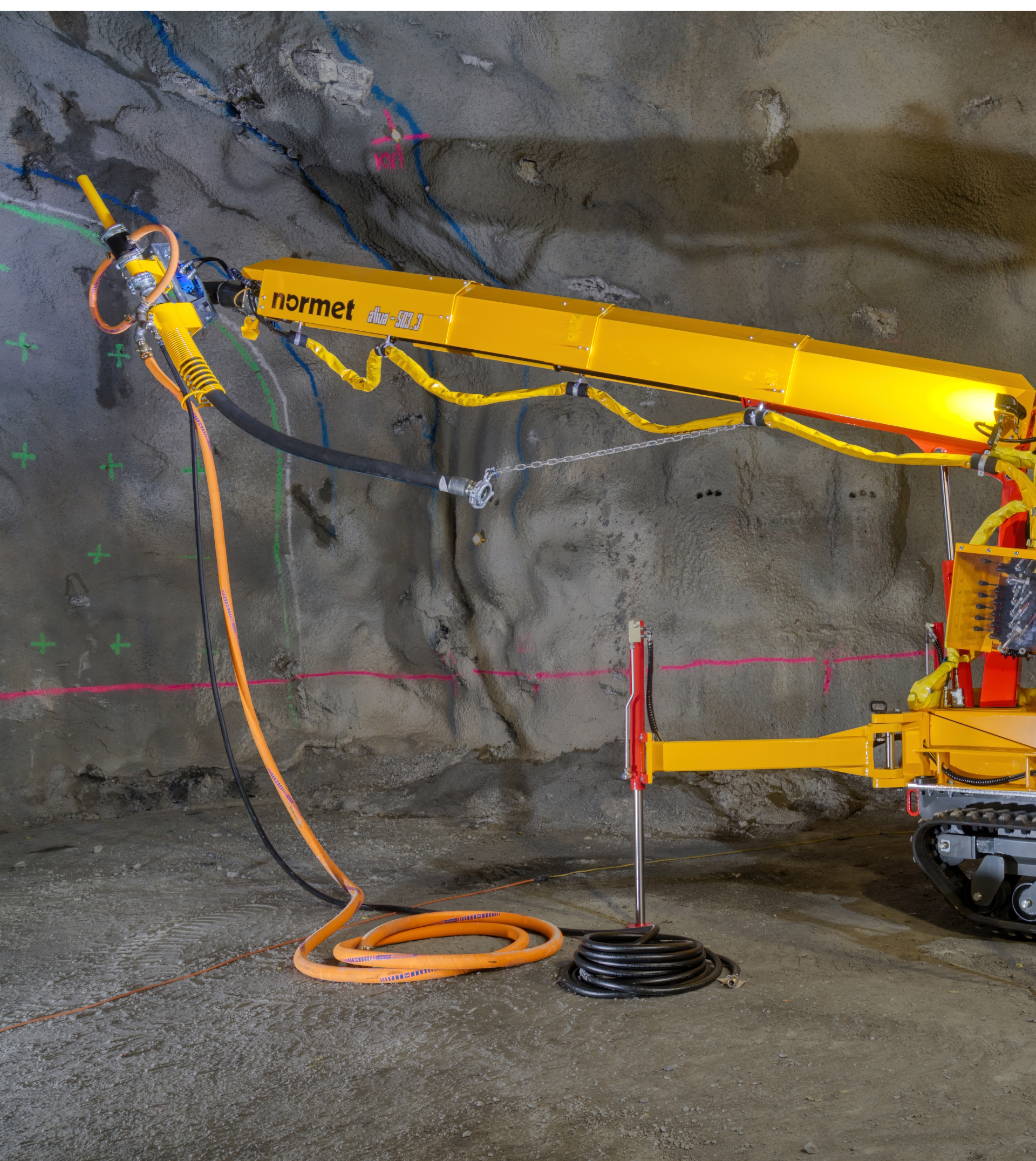

Telescopic, robust spraying arm
Suitable for very narrow tunnels
Easy handling and time-saving maintenance
Spraying reach from 2 - 9 m

Features

Features

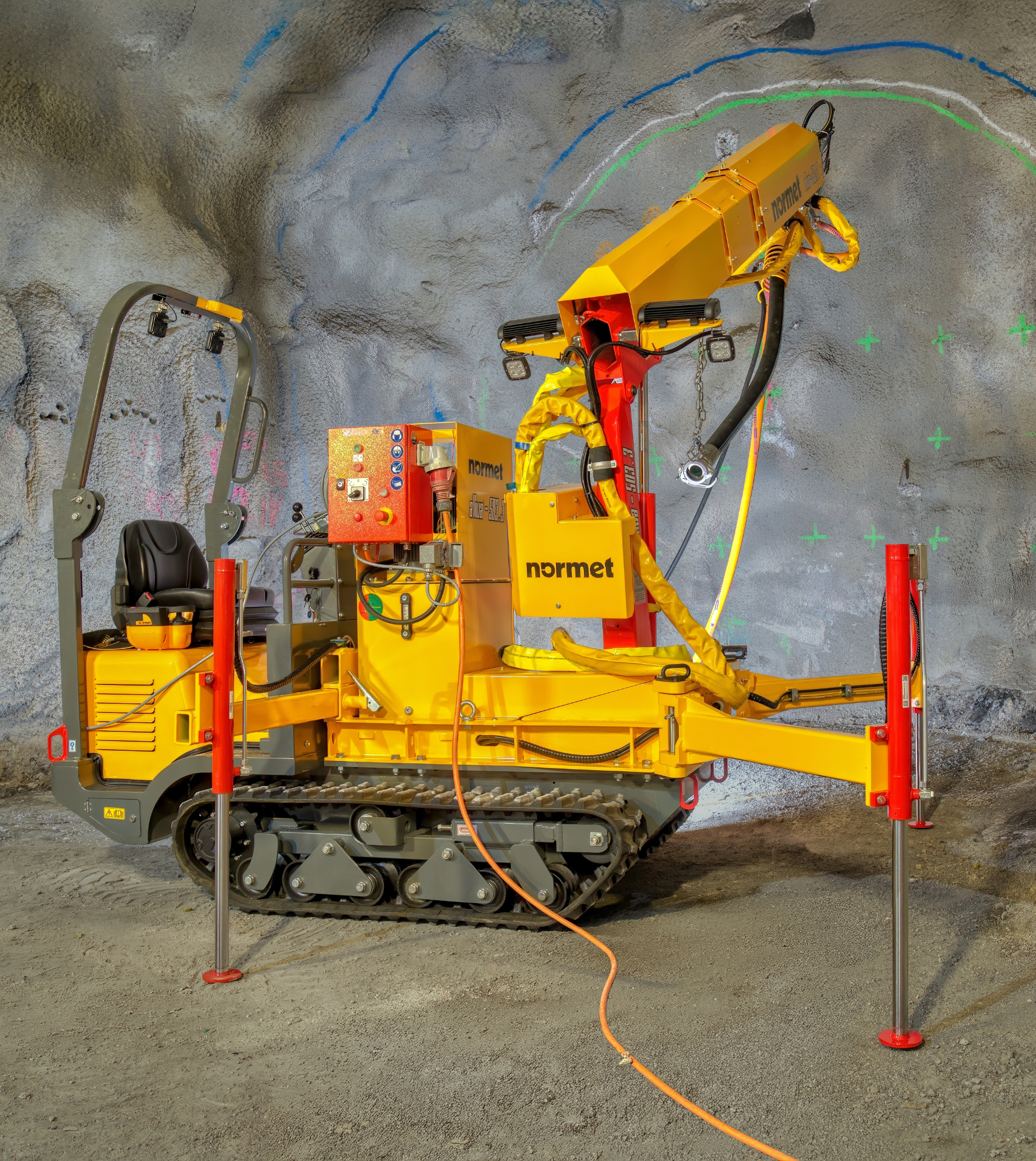

Uniquely reinforced track carrier with roll bar and safety harness for maximum protection
2 independent hydrostatic drives
Powerful, water cooled 16-kW diesel engine
2 front supporting legs, hydraulic, for highest stability and 100° spraying coverage area
3-hub telescopic spraying arm Aliva-302.1 with hydraulic aggregate and control cabinet
Electrical remote control with 15 m cable

Benefits

Increased job security
Increased productivity
Makes scaffolding or scissor lifts for concrete spraying obsolete
Can be adjusted to your specific needs

For a complete list of features please view the technical specification
